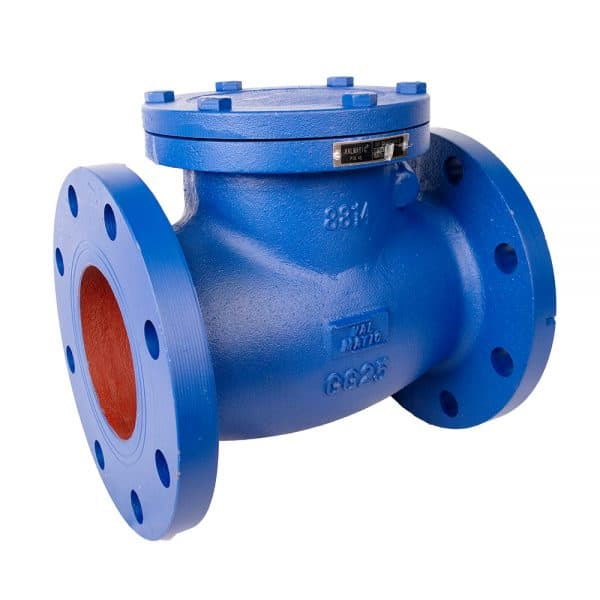

VALMATIC Cast Iron Swing Check Valve
Size Range: 2 – 16″
Pressure Ratings: Class 125, maximum 175 psi
- Description
- Resources
Description
| Specifications | |
|---|---|
| Size Range | 2 – 16″ |
| Pressure Ratings | Class 125, maximum 175 psi |
| End Connections | Flanged to ANSI 150, PN16, JIS 10K |
| Standards | |
|---|---|
| Design Standard | MSS SP-71 |
| Face to Face Dimension | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test Pressure (Hydrostatic) | |
|---|---|
| Body | 300 psi |
| Seat | 200 psi |
| Materials | |
|---|---|
| Cast Iron | |
| Body | Cast Iron ASTM A126B |
| Seat Ring | Stainless Steel 13% Cr |
| Disc | Cast Iron ASTM A126B |
| Disc Ring | Stainless Steel 13% Cr |
