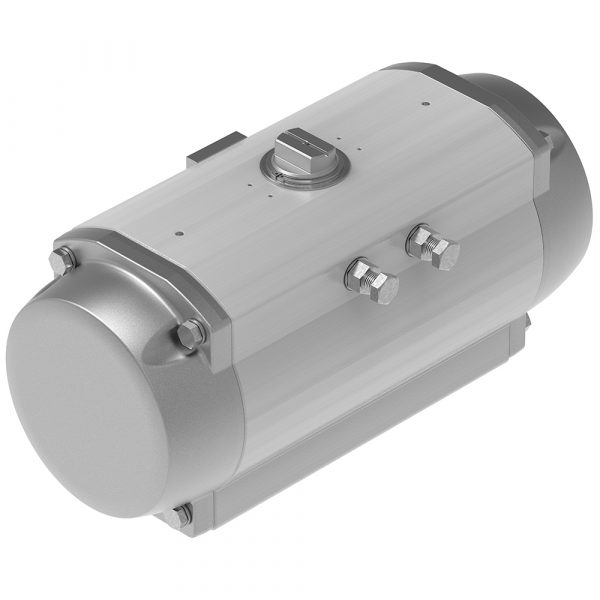

FESTO DFPD Pneumatic Actuator
Output Torque: 10 to 2300 Nm
Temperature Range: Up to 80°C (NBR)
Air Pressure: 2 to 8 bar
- Description
- Resources
Description
| Specifications | |
|---|---|
| Output Torque | 10 to 2300 Nm |
| Temperature Range | -50°C to 70°C (NBR) |
| Up to 150°C (FKM) | |
| Air Pressure | 2 to 8 bar |
| Mounting | ISO 5211 |
| Application | On-Off, Throttling, Double Acting, Spring Return |
| Valve Compatibility | Butterfly Valve, Ball Valve |
| Standards | |
|---|---|
| Connections | ISO 5211, NAMUR VDI/VDE 3845 |
| Certifications | SIL 2 |
| Materials | |
|---|---|
| Body | Anodised Aluminium Alloy |
| End Caps | Costed die-cast aluminium |
| Pistons | Die-cast aluminium |
| Seals | NBR |
| Bearing | POM |
