Pigging System
Pig Launcher and Receiver
Size Range: 2″ – 48″
Body Material: Carbon Steel ASTM A106 Gr. B Schedule 40
End Connection: Flanged End ASME 150 RF, BS EN 1092 PN16
Pipeline Pigs
Size Range: 2″ – 90″
Pig Types: Foam (Bare, Criss Cross, Wire Brush), Flexicast, Cup , Unibody, Mandrel Body
Pig Signaller
Body Material: Stainless Steel 304
End Connection: 2″ NPT Male Thread
- Description
- Resources
Description

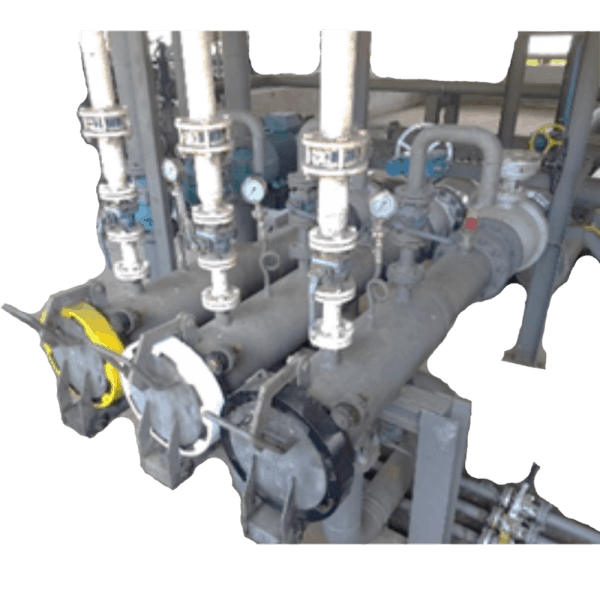

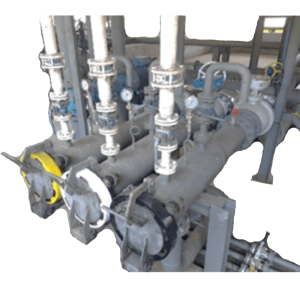

| Pig Launcher and Receiver | |
|---|---|
| Pig Launchers are used to launch the pig inserted into the pipeline. | |
| Pig Receivers are used to receive the pigs after it has completed the pipeline cleaning. | |
| Both luancher and receiver are equipped with a lockable quick opening closure. | |
| Specifications | |
|---|---|
| Size Range | 2″ – 48″ |
| Body Material | Carbon Steel ASTM A106 Gr. B Schedule 40 |
| End Connection | Flanged End ASME 150 RF, BS EN 1092 PN16 |

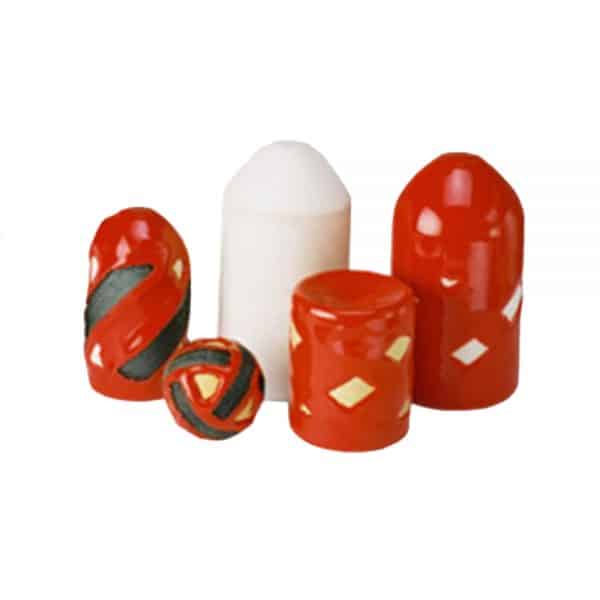

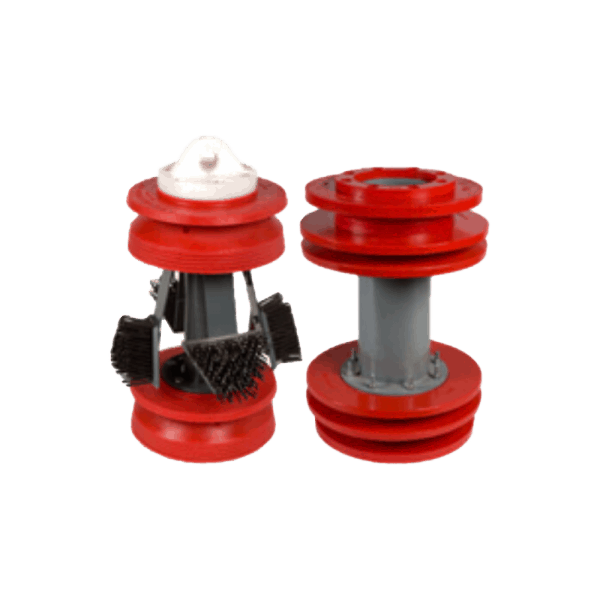

| Pipeline Pigs | |
|---|---|
| Pipeline pigs are used to perform various piping maintenance operations through the pipeline by differential pressures across the pigs. |
| Specifications | |
|---|---|
| Size Range | 2″ – 90″ |
| Pig Types | Foam (Bare, Criss Cross, Wire Brush), Flexicast, Cup , Unibody, Mandrel Body |

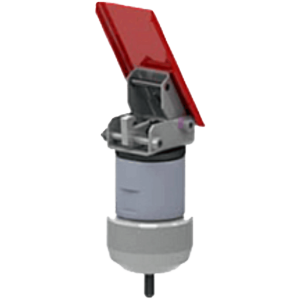

| Pig Signaller | |
|---|---|
| Pig Signaller indicates the passage of a pig through direct contact with a passing pig that activates a trigger pin to flip up the visual tag. The magnetic operation elimites potentially problematic mechanical linkages. |
| Specifications | |
|---|---|
| Body Material | Stainless Steel 304 |
| End Connection | 2″ NPT Male Thread |
