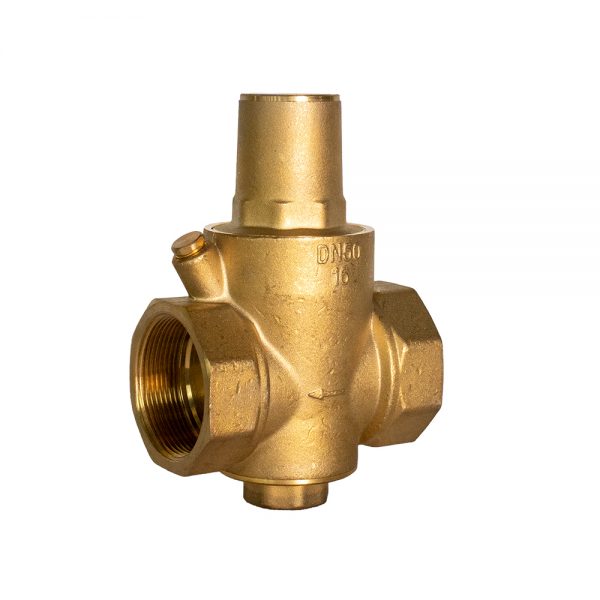

VALMATIC Pressure Reducing Valve

Size Range: 15 – 50 mm (1/2 – 2″)
Working Temperature: Up to 80°C
Pressure Rating: PN16

Description

Specifications
Size Range15 – 50 mm (1/2 – 2″)
Working TemperatureUp to 80°C
Pressure RatingPN16
End ConnectionScrewed End BSPT
Spring Range1-6 Barg adjustable
Factory Preset Pressure3 Barg
Materials
Body Brass
Spring Seat Brass
Disc Seat PTFE
