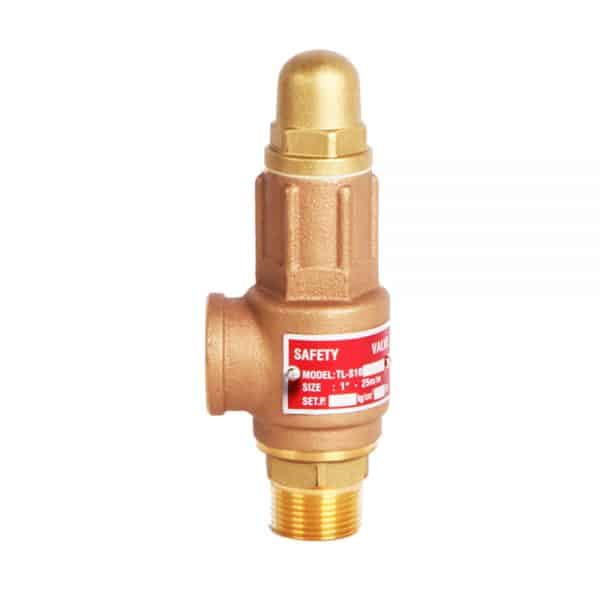

VALMATIC Safety Relief Valve
Size Range: 15 – 50 mm (1/2 – 2″)
Working Temperature: Up to 185°C
Adjustment Range: 0.3 to 10 kg/cm² (standard);
11 to 20 kg/cm² (optional)
- Description
- Resources
Description
| Specifications | |
|---|---|
| Size Range | 15 – 50 mm (1/2 – 2″) |
| Working Temperature | Up to 185°C |
| Adjustment Range | 0.3 to 10 kg/cm² (standard) |
| 11 to 20 kg/cm² (optional) | |
| End Connection | Male thread inlet, female thread outlet |

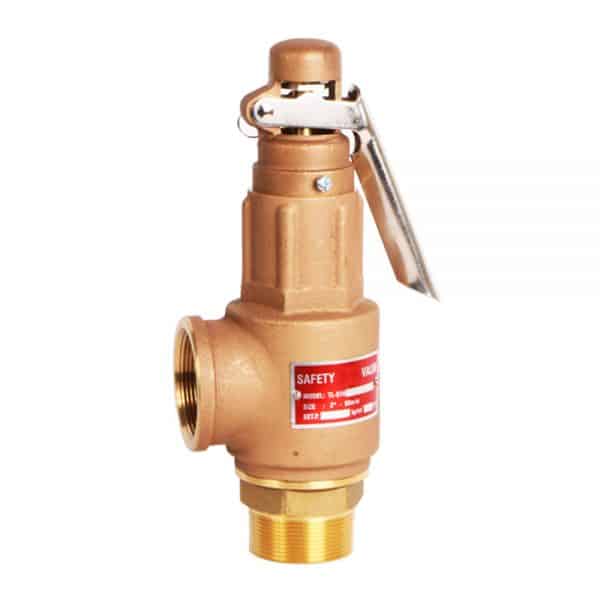

| Optional | Lifting device, Disc with PTFE |
| Materials | |
|---|---|
| 1. Fig 11C | |
| Body | Bronze |
| Seat | Brass |
| Disc | Brass |
| Stem | Brass |
| 2. Fig 11L | |
| Body | ASTM A351 CF8, CF8M |
| Seat | ASTM A351 CF8, CF8M |
| Disc | SS304, SS316 |
| Stem | SS316 |
