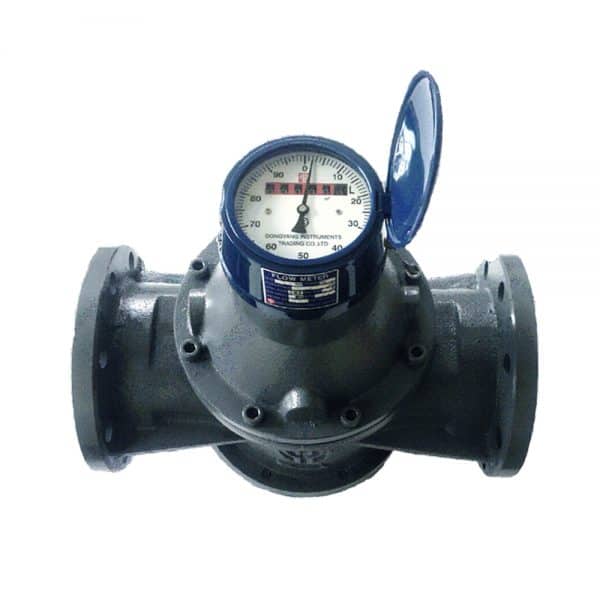

DONG YANG Rotary Piston Type Oil Flow Meter
MODEL: DYOR
Size Range: 1 1/2″ – 4″
Temperature Range: Up to 100°C (180°C optional)
Pressure Rating: Maximum 10 kgf/cm²
Flow Range: 30 – 35,000 litre/hour
- Description
- Resources
Description
| Operating Conditions | |
|---|---|
| DONG YANG Roots Oil Flow Meter is constructed with roots positive displacement gear which provide high accuracy flow measurement. This flow meter is generally used for boiler fuel oil, crude palm oil, diesel oil, light/heavy oil, kerosene and etc. | |
| Specifications | |
| Size Range | 1 1/2″ – 4″ |
| Temperature Range | Up to 100°C (180°C optional) |
| Pressure Rating | Maximum 10 kgf/cm² |
| Flow Range | 30 – 35,000 litre/hour |
| End Connection | Flanged End to JIS10K, PN16 |
| Display | Analog (Digital LCD display optional) |
| Flow Unit | Litre/hour |
| Accuracy | ±0.5% |
| Totalising | 999.999 litres non-resetable or resetable |
| Optional | Pulse output, 4 to 20 mA output |
| Materials | |
|---|---|
| Body Case | Cast Iron |
| Rotors | Aluminium Alloy |
