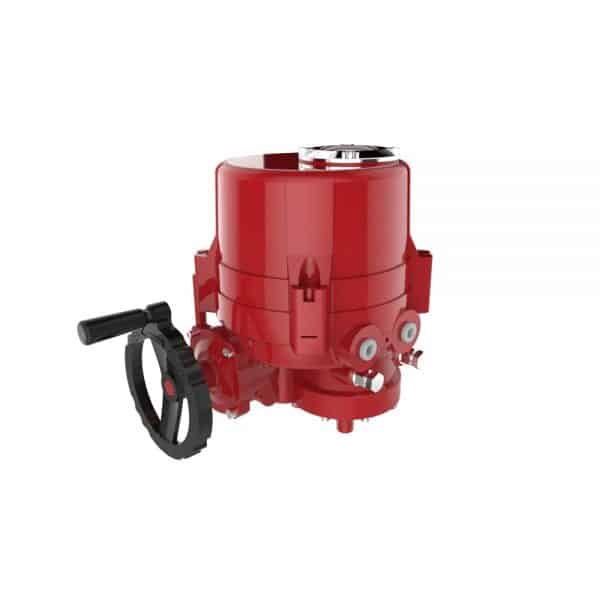

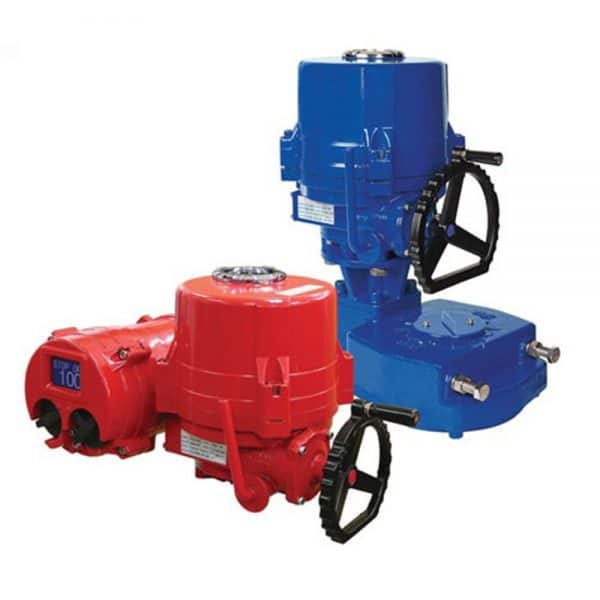

I-TORK (Korea)

Output Torque: 80 to 9000 Nm
Power Supply: 110, 220 VAC 50/60 Hz, 1 phase;
380, 440 VAC 50/60 Hz, 3 phase;
24V: AC/DC
Enclosure Ratings: Weatherproof IP67, NEMA4 4X and 6
Temperature Range: Up to 70°C

Description

Specifications
Output Torque 80 to 9000 Nm
Power Supply 110, 220 VAC 50/60 Hz, 1 phase
380, 440 VAC 50/60 Hz, 3 phase
24V: AC/DC
Temperature Range Basic Actuator -20°C to +70°C
With control options -10°C to +60°C
Travel Angle 90°C +/- 5° (0-100°)
Manual Override De-clutchable
External Coating Dry powder (Polyster)
Valve Compatibility Butterfly Valve, Ball Valve
Standards
Enclosure Ratings Weatherproof IP67, NEMA4 4X and 6
Mounting ISO 5211
Modulating Remote Positioning Controller (RPC)
Motor Squirrel Caged induction Motor
Limit Switches 2 each for open and close (SPDT)
Torque Switch 1 each for open and close (SPDT), except ITQ 0100, 0080 and 0040
Space Heaters 5W (110 / 220 VAC) for anti-condensation
