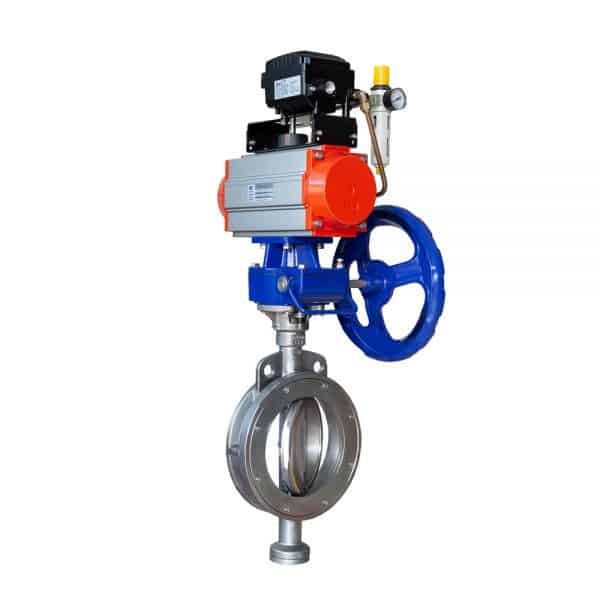

CEPHAS High Performance Butterfly Valve
Size Range: 50 – 1200 mm (2 – 48”)
Temperature Range: -100°C to 600°C
Pressure Ratings: ANSI B16.5 Class 150, 300
- Description
- Resources
Description
| Specifications | |
|---|---|
| Size Range | 50 – 1200 mm (2 – 48”) |
| Temperature Range | -100°C to 600°C |
| Pressure Ratings | ANSI B16.5 Class 150, 300 |
| Max Working Pressure | 40 bar (DN 50 to DN 300) |
| 30 bar (DN 350 to DN 1500) | |
| End Connection | ANSI B16.5 Class 150, 300 |
| Seat Leakage (water) | Tight Shut-off / ANSI B16.104 Class V (Metal Seat) |
| Actuation | Lever, Gear, Pneumatic |
| Standards | |
|---|---|
| Design Standard | API 609 |
| Top Flange Dimension | ISO 5211 |
| Materials | |
|---|---|
| Body | Carbon Steel, Stainless Steel |
| Stem | ASTM A478 Type 304 & 316, 17-4 PH |
| Seat RIng | Stainless Steel 316, RTFE |
| Disc | Stainless Steel CF8, CF8M |
