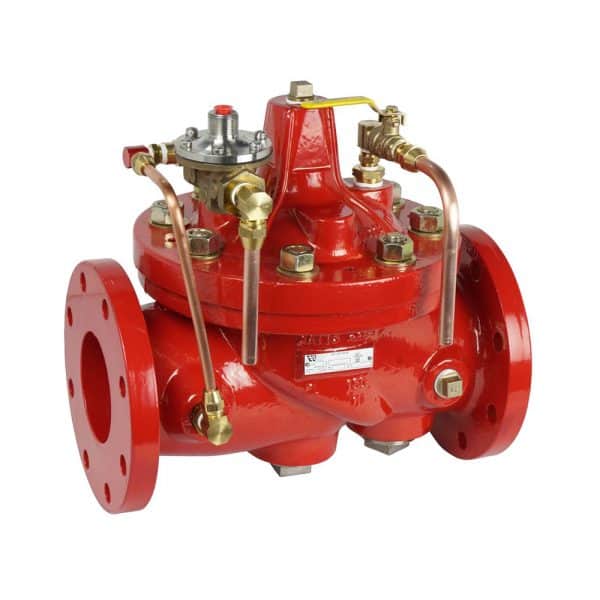

WATTS Deluge Valve
Size Range: 32 to 600mm (1¼” to 24″)
Temperature Range: Up to 90°C
Pressure Ratings: Class 150, max 250 psi (17.2 bar);
Class 300, max 500 psi (34.5 bar)
- Description
- Resources
Description
Product Catalogue
Size Range: 32 to 600mm (1¼” to 24″)
Temperature Range: Up to 90°C
Pressure Ratings: Class 150, max 250 psi (17.2 bar);
Class 300, max 500 psi (34.5 bar)
Specifications | |
---|---|
Size Range | 32 to 600mm (1¼” to 24″) |
Temperature Range | Up to 90°C |
Pressure Ratings | Up to 250 psi (500 psi optional) |
End Connection | Flanged End to ANSI 150, 300; PN 16, 25 |
Threaded End | |
Valve Design | Globe or Angle Pattern |
Materials | |
---|---|
Body | Ductile Iron, Cast Bronze |
Coating | NSF 61 Certified Fusion Bonded Epoxy |
Diaphragm | Nylon Reinforces Buna-N Rubber ASTM D2000 |
Seat | Stainless Steel ASTM CF8M (SS316) |
Deluge Valve (ACV100D-A / ACV100D-B) | |
A deluge fire protection system is a dry sprinkler system that is directly connected to a water supply. When the system is activated by a heat or smoke detection system, a deluge valve will open to release the water to all the open sprinkler heads. |
