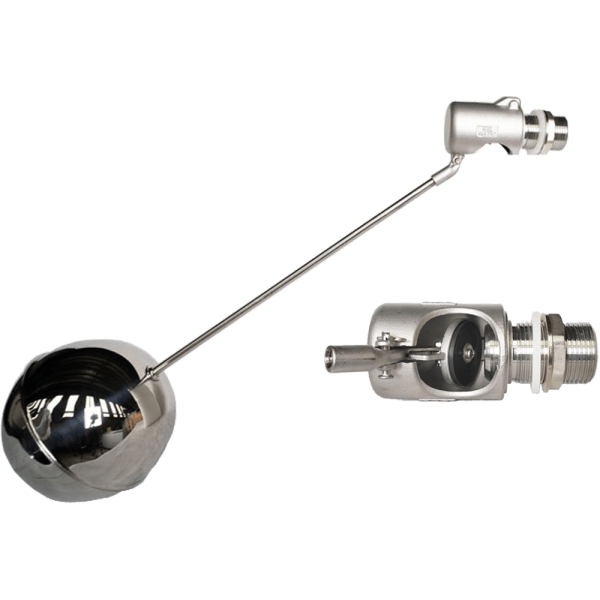

VALMATIC Stainless Steel Ball Float Valve
Size Range: 15 – 200 mm (1/2 – 8″)
Temperature Range: Up to 120°C
Working Pressure: 10 bar
- Description
- Resources
Description
| Specifications | |
|---|---|
| Size Range | 15 – 200 mm (1/2 – 8″) |
| Temperature Range | Up to 120°C |
| Working Pressure | 10 bar |
| End Connection | Screwed End or Flanged End |
| Standards | |
|---|---|
| Design Standard | BS 1212 |
| Material | |
|---|---|
| 1. Screwed End | |
| Body | ASTM A351 CF8 |
| Seat | Viton |
| Disc | ASTM A351 CF8 |
| Float Ball | ASTM A351 CF88 |
| 2. Flanged End | |
| Body | Cast Iron, SS304, SS316 |
| Seat | SS304, SS316 |
| Disc | SS304 |
| Float Ball | SS304 |
