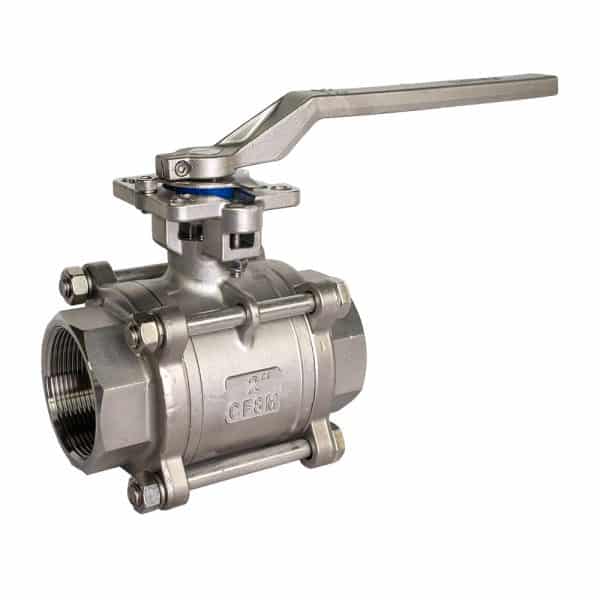

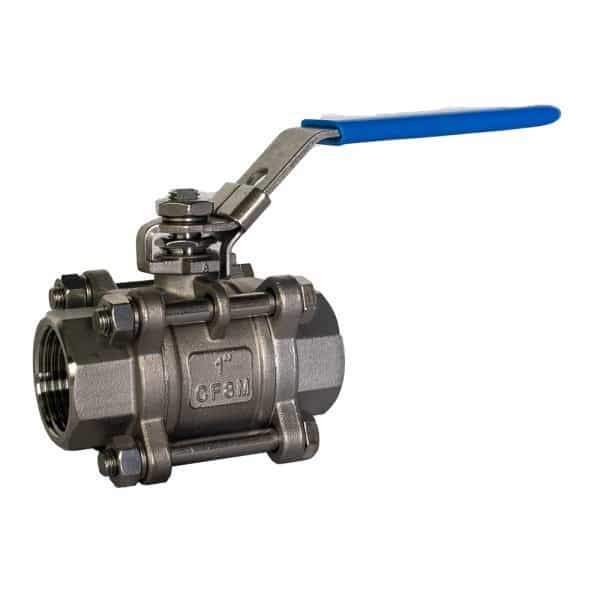

VALMATIC 3 Piece Economy Type Ball Valve

VALMATIC 3 Piece Economy Type Ball Valve

Size Range: 8 – 100 mm (1/4 – 4”)
Temperature Range: Up to 180°C
Pressure Ratings: 1/4 – 2″, 1000 psi WOG;
2 1/2 – 4″, 800 psi WOG

Categories: ,
View cart

Description

Specifications
Size Range 8 – 100 mm (1/4 – 4”)
Temperature Range Up to 180°C
Pressure Ratings 1/4 – 2″, 1000 psi WOG
2 1/2 – 4″, 800 psi WOG
End Connections Threaded, Socket Weld, Butt Weld
Actuation Lever (standard), gear, pneumatic or electric actuator
Standards
Face to Face DIN 3202
Materials
1. Forged Carbon Steel
Body ASTM A105
Stem ASTM A276-316
Seat 15% Glass Filled PTFE
25% Carbon Filled PTFE
Ball ASTM A351 CF8M (SS316)
2. Stainless Steel 316
Body ASTM A351 CF8M (SS316)
Stem ASTM A276-316
Seat 15% Glass Filled PTFE
25% Carbon Filled PTFE
Ball ASTM A351 CF8M (SS316)
