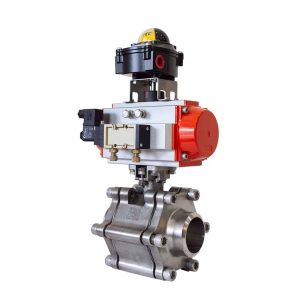

VALMATIC 3 Piece High Performance Ball Valve

VALMATIC 3 Piece High Performance Ball Valve

Size Range: 8 – 100 mm (1/4 – 4”)
Temperature Range: Up to 180°C
Pressure Ratings: 1/4 – 1 1/2″, 2000 psi WOG;
2 – 4″, 1000 psi WOG

Categories: ,
View cart

Description

Specifications
Size Range 8 – 100 mm (1/4 – 4”)
Temperature Range Up to 180°C
Pressure Ratings 1/4 – 1 1/2″, 2000 psi WOG
2 – 4″, 1000 psi WOG
End Connections Threaded, Socket Weld, Butt Weld
Standards
Design Standard API 6D
Firesafe Test API 607
Minimum Wall Thickness ASME B16.34 Table 3
Test and Inspection API 598
Pressure – Temperature Rating ASME B16.34
Actuation
Lever Operated (Standard)
Gear Operated
Pneumatic Actuator
Electric Actuator
Materials
1. Forged Carbon Steel
BodyASTM A105
StemASTM A276-316
Seat
BallASTM A351 CF8M (SS316)
2. Stainless Steel 316
BodyASTM A351 CF8M (SS316)
StemASTM A276-316
Seat
BallASTM A351 CF8M (SS316)
