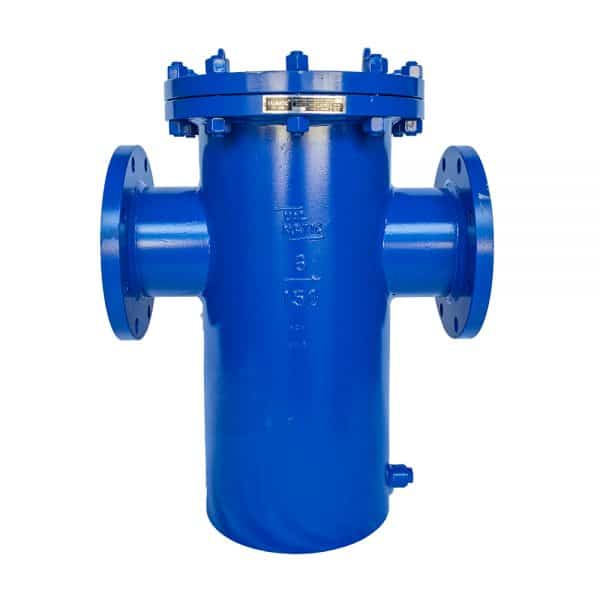

VALMATIC Bucket Strainer

VALMATIC Bucket Strainer

Size Range: 50 – 600 mm (2 – 24″)
Temperature Range: -20°C to 425°C
Pressure Ratings: Class 150, 300

Categories: ,
View cart

Description

Specifications
Size Range 50 – 600 mm (2 – 24″)
Temperature Range -20°C to 425°C
Pressure Ratings Class 150, 300
End Connection Flanged to ANSI 150, 300
Flanged to DIN PN 16, 40
Flanged to JIS 10K, 20K
Standards
Design Standard ASME B16.34
Flange Dimension ASME B16.5
Test and Inspection API 598
Pressure – Temperature Rating ASME B16.34
Materials
1. Carbon Steel
Body ASTM A216 WCB
Screen Stainless Steel X5CrNi 18-10
Plug ASTM A105
2. Stainless Steel 304
Body ASTM A351 CF8 (SS304)
Screen ASTM A351 CF8 (SS304)
Plug ASTM A182 F304
2. Stainless Steel 316
Body ASTM A351 CF8M (SS316)
Screen ASTM A351 CF8M (SS316)
Plug ASTM A182 F316
