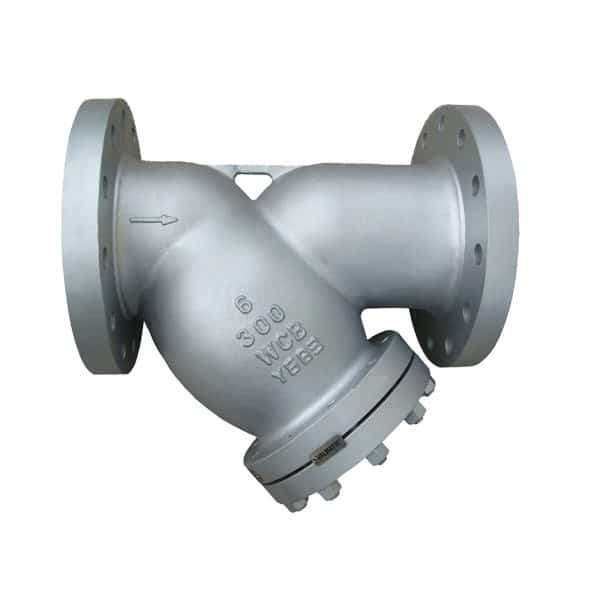

VALMATIC ANSI Standard Y-Strainer

Size Range: 15 – 400 mm (1/2 – 16”)
Pressure Ratings: Class 150, 300 and 600

Categories: ,

Description

Specifications
Size Range 15 – 400 mm (1/2 – 16”)
Pressure Ratings Class 150, 300 and 600
End Connections Flanged
Mesh Size 40 / 60 / 80 / 100
Standards
Face to Face Dimension ASME B16.10
Flange Dimension ASME B16.5
Test and Inspection API 598
Pressure – Temperature Rating ASME B16.34
Materials
1. Carbon Steel
Body ASTM A216 WCB
Screen ASTM A351 CF8 (SS304)
Gasket Metal + Graphite
2. Stainless Steel 304
Body ASTM A351 CF8 (SS304)
Screen ASTM A351 CF8 (SS304)
Gasket Metal + Graphite
3. Stainless Steel 316
Body ASTM A351 CF8M (SS316)
Screen ASTM A351 CF8M (SS316)
Gasket Metal + Graphite
