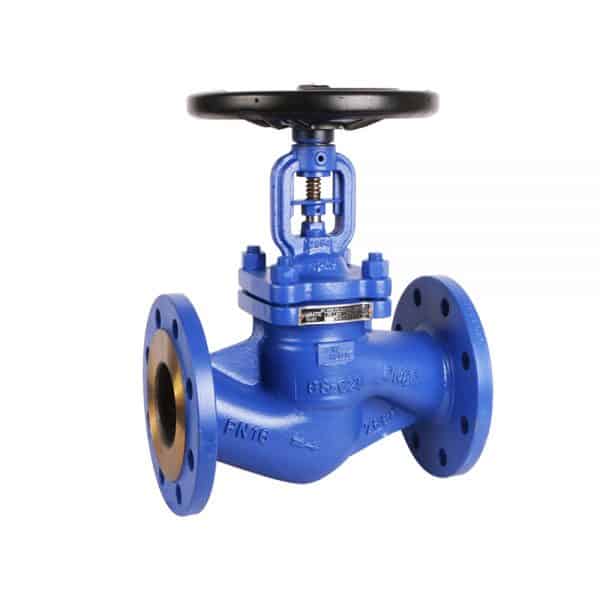

VALMATIC Bellow Seal Globe Valve

VALMATIC Bellow Seal Globe Valve

Size Range: 15 – 300 mm (1/2 – 12”)
Pressure Ratings: PN16, PN40
Class 150, 300

Categories: ,
View cart

Description

Specifications
Size Range 15 – 300 mm (1/2 – 12”)
Pressure Ratings PN16 / PN40, Class 150 / 300
End Connections Flanged to DIN PN16 / PN40 , ANSI 150 / 300
Applications Water, Steam, Gases, Thermal oil and non-abrasive media
Bellow Design 15 to 150 mm (Standard)
200 to 400 mm (with Bellow Protector)
Standards
Face to Face Dimension EN 558-1 Series 1
Pressure – Temperature Rating DIN EN 1092-1/2
Materials
1. Carbon Steel
Body Carbon Steel GP240GH+N
Stem Stainless Steel X20Cr13
Seat Ring Stainless Steel X20Cr13
Disc Stainless Steel X20Cr13
2. Stainless Steel 304
Body Stainless Steel 1.4301
Stem Stainless Steel F304
Seat Ring Stainless Steel F304
Disc Stainless Steel F304
3. Stainless Steel 316
Body Stainless Steel 1.4408
Stem Stainless Steel F316
Seat Ring Stainless Steel F316
Disc Stainless Steel F316
