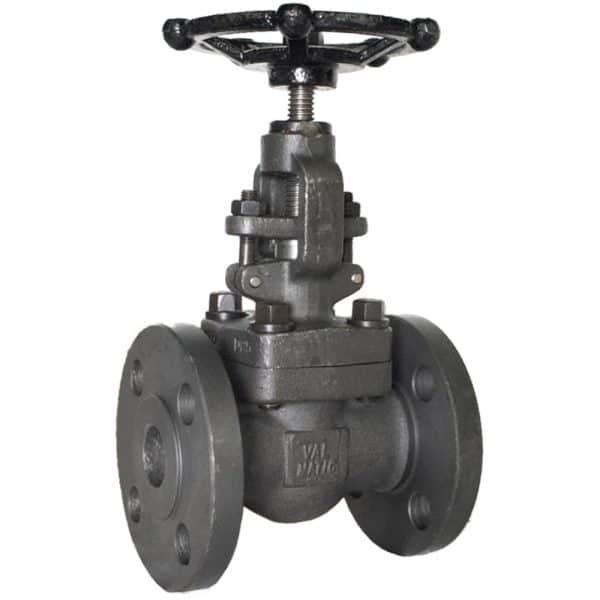

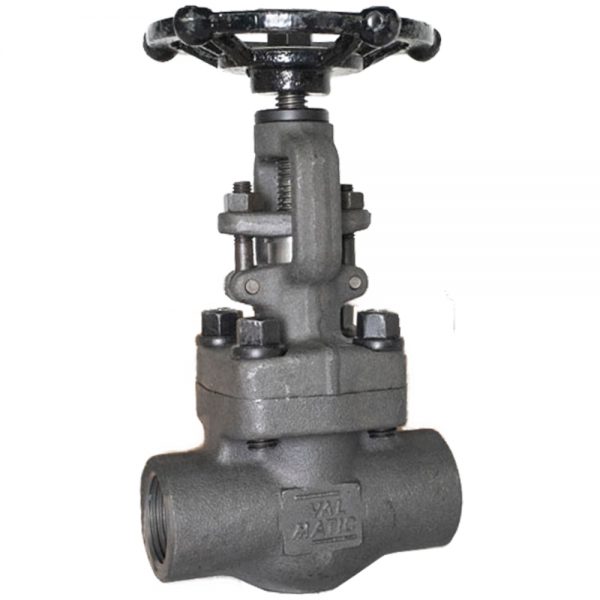

VALMATIC Forged Steel Globe Valve

Size Range: 1/2 – 2”
Temperature Range: Up to 500°C
Pressure Ratings: ASME Class 150, 300, 600, 900 and 1500

Categories: ,

Description

Specifications
Size Range 1/2 – 2”
Temperature Range Up to 500°C
Pressure Ratings ASME Class 150, 300, 600, 900 and 1500
End Connections Threaded, Socket Weld, Flanged
Standards
Design Standard API 602, BS 5352
Flange Dimension ASME B16.5
Threaded End Dimension ASME B1.20.1
Socket Weld Dimension ASME B16.11
Test and Inspection API 598
Pressure – Temperature Rating ASME B16.34
Materials
1. Forged Carbon Steel
Body ASTM A105N
Stem ASTM A276-410
Seat Overlay Stellite 6
Disc ASTM A276-410
2. Forged Stainless Steel 304
Body ASTM A182 F304
Stem ASTM A351 CF8 (SS304)
Seat Overlay Stellite 6
Disc ASTM A351 CF8 (SS304)
3. Forged Stainless Steel 316
Body ASTM A182 F316
Stem ASTM A351 CF8M (SS316)
Seat Overlay Stellite 6
Disc ASTM A182 F316

Features & Benefits

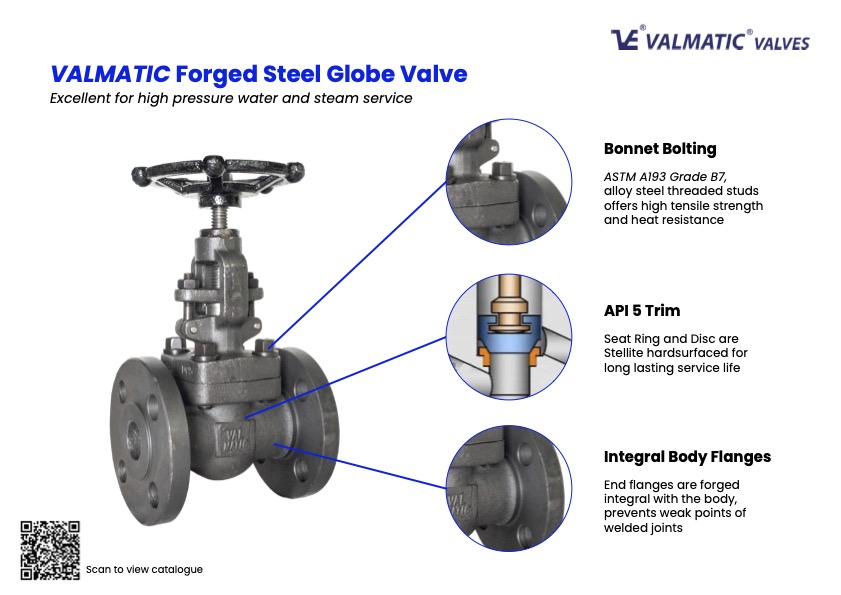

Valmatic Forged Steel Globe Valve Features
