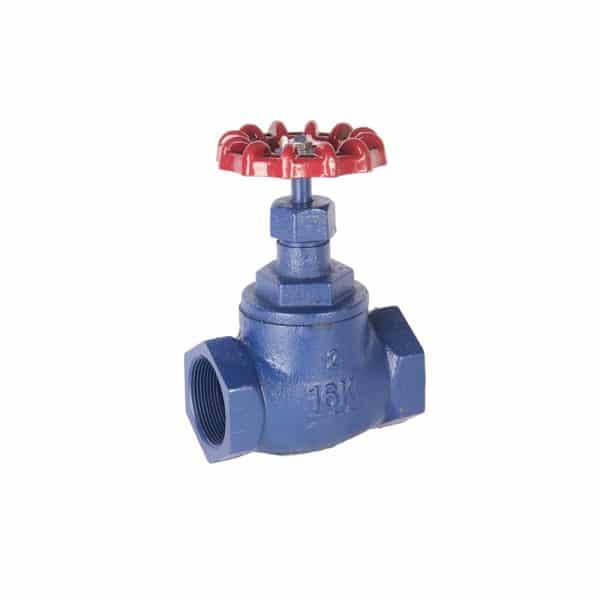

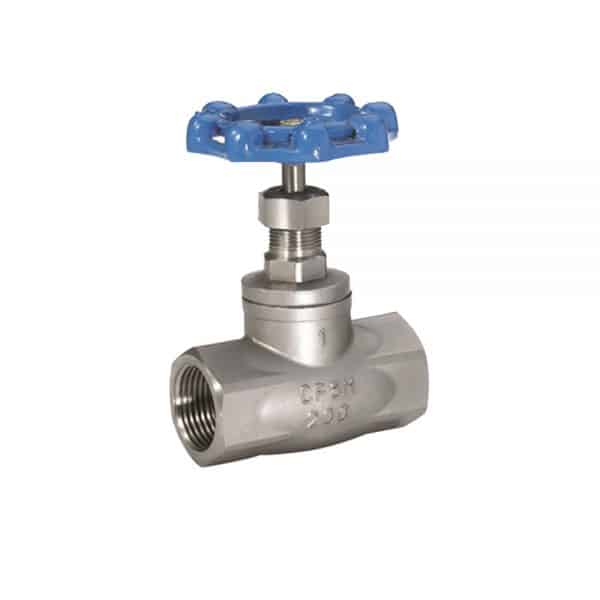

VALMATIC Threaded Globe Valve
Size Range: 10 – 50 mm (3/8 – 2″)
Temperature Range: Up to 350°C (Graphite); Up to 180°C (PTFE)
Pressure Ratings: 16 kgf/cm2
- Description
- Resources
Description
| Specifications | |
|---|---|
| Size Range | 10 – 50 mm (3/8 – 2″) |
| Temperature Range | Up to 350°C (Graphite) |
| Up to 180°C (PTFE) | |
| Pressure Ratings | 16 kgf/cm2 |
| End Connections | Screwed End BSPT |
| Standards | |
|---|---|
| Test Pressure | Body (35 kgf/cm2) |
| Seat (25 kgf/cm2) | |
| Materials | |
|---|---|
| 1. Ductile Iron | |
| Body | Ductile Iron FCD 450 |
| Stem | Stainless Steel 410 |
| Seat Ring | Stainless Steel 410 |
| Disc | Stainless Steel 410 |
| 2. Stainless Steel 304 | |
| Body | Stainless Steel 304 |
| Stem | Stainless Steel 304 |
| Seat Ring | Stainless Steel 304 |
| Disc | Stainless Steel 304 |
| 3. Stainless Steel 316 | |
| Body | Stainless Steel 316 |
| Stem | Stainless Steel 316 |
| Seat | Stainless Steel 316 |
| Disc | Stainless Steel 316 |
| 4. Bronze | |
| Body | Bronze |
| Stem | DZR Brass |
| Seat Ring | Bronze |
| Disc | Bronze |
